Certain everyday tasks are necessary to build any software automation project such as downloading the required dependencies, putting additional jars, compiling source code into binary code, running tests, packaging of compiled code into different artifacts such as Jar, Zip, and War files, and deployment of these artifacts to an application server or repository. These are very tedious tasks to do manually every time, so we need a tool that helps us to achieve all these tasks in minimized time to reduce human efforts. Here comes Maven into the picture, a build lifecycle management tool that helps automate all these tedious tasks from compiling resources to building the artifacts. Now, we know that Jenkins is one of the most used CI/CD tools, and the integration of Jenkins Maven is kind of a must to support the complete CI/CD for Java-based projects.

Subsequently, let's quickly understand the few necessary details of Maven and then understanding the Jenkins Maven integration in detail by covering the details in the following topics:

  • What is Maven?
    • And what is the difference between Maven and Jenkins?
  • What is Maven Plugin for Jenkins?
    • How to install Maven Plugin in Jenkins?
  • How to integrate Maven with Jenkins?
    • Also, how to setup Java Path in Jenkins?
    • How to set up Maven Path in Jenkins?
  • What is a Maven Project in Jenkins?
    • How to create a Maven project in Jenkins?
    • How to execute a Maven project in Jenkins?

What is Maven?

Maven is a powerful build management tool for Java projects to help execute a build life cycle framework. The basis of the Maven is the concept of POM (Project Object Model) in which all configurations can be done with the help of a pom.xml file. It is a file that includes all the project and configuration-related information such as source directory, dependencies with its version, plugins, and builds information, test source directory, etc. A few of the key features of Maven are:

  • Maven describes how the project is built. It builds a project using the Page Object Model.
  • Maven automatically downloads, update as well as validate the compatibility between dependencies.
  • In Maven, dependencies are retrieved from the dependency repository, whereas plugins are retrieved from plugin repositories, so mavens keep proper isolation between project dependencies and plugins.
  • Maven can also generate documentation from the source code, compiling and then packaging compiled code into JAR files or ZIP files.

For detailed information and understanding of Maven, you can refer to Maven Tutorials.

As we understood, both Maven and Jenkins are automation tools, which are used for the automation of various stages of builds. Still, they are not alternatives to each other. Before understanding Maven and Jenkins's integration, let's quickly understand some differences between Jenkins and Maven.

What is the difference between Maven and Jenkins?

As we discussed, even though Maven and Jenkins don't have any direct comparisons as both of them fulfill different purposes. Still, we can compare them on the following parameters:

Comparison Parameter Jenkins Maven
Purpose Jenkins is a CI/CD tool, which uses various other tools/plugins to automate the complete build cycle. Maven is a build lifecycle management tool that helps in dependency management and creating automated builds.
Programming Models Jenkins uses groovy for pipeline creation or uses the GUI for standalone jobs. Maven works on an XML based structure for performing various actions in a build lifecycle.
Dependency Management Jenkins can provide dependency between various jobs, but this is more of an action dependency. Maven provides capabilities for resource dependency management, including third-party dependencies for builds.
Scope Jenkins can do much more than build and deploy, such as server management, database management. It uses integration with various tools for this purpose. Maven is more restricted around code and builds. This serves as a plugin in Jenkins for building Maven-based java projects.

Let's now quickly see how we can integrate Maven with Jenkins:

What is Maven Plugin for Jenkins?

The Maven Plugin is a plugin that provides the capabilities to configure, build, and run Maven-based projects in Jenkins. This is a must pre-requisite for the integration of Maven with Jenkins. Let's see how to can install Maven's integration plugin in Jenkins:

How to install Maven Plugin in Jenkins?

Follow the steps as mentioned below to install the Maven plugin in Jenkins:

1st Step: Click on the Manage Jenkins link in the left menu bar, as highlighted below:

Manage Jenkins option

2nd Step: Under the System Configuration section, click on the Manage Plugins options:

Manage Plugins Section in Jenkins

3rd Step: Under the Plugin Manager, click on the Available tab (marker 1) and search for the maven plugin (marker 2). It will show the Maven Integration plugin as a result (marker 3):

maven plugin in jenkins

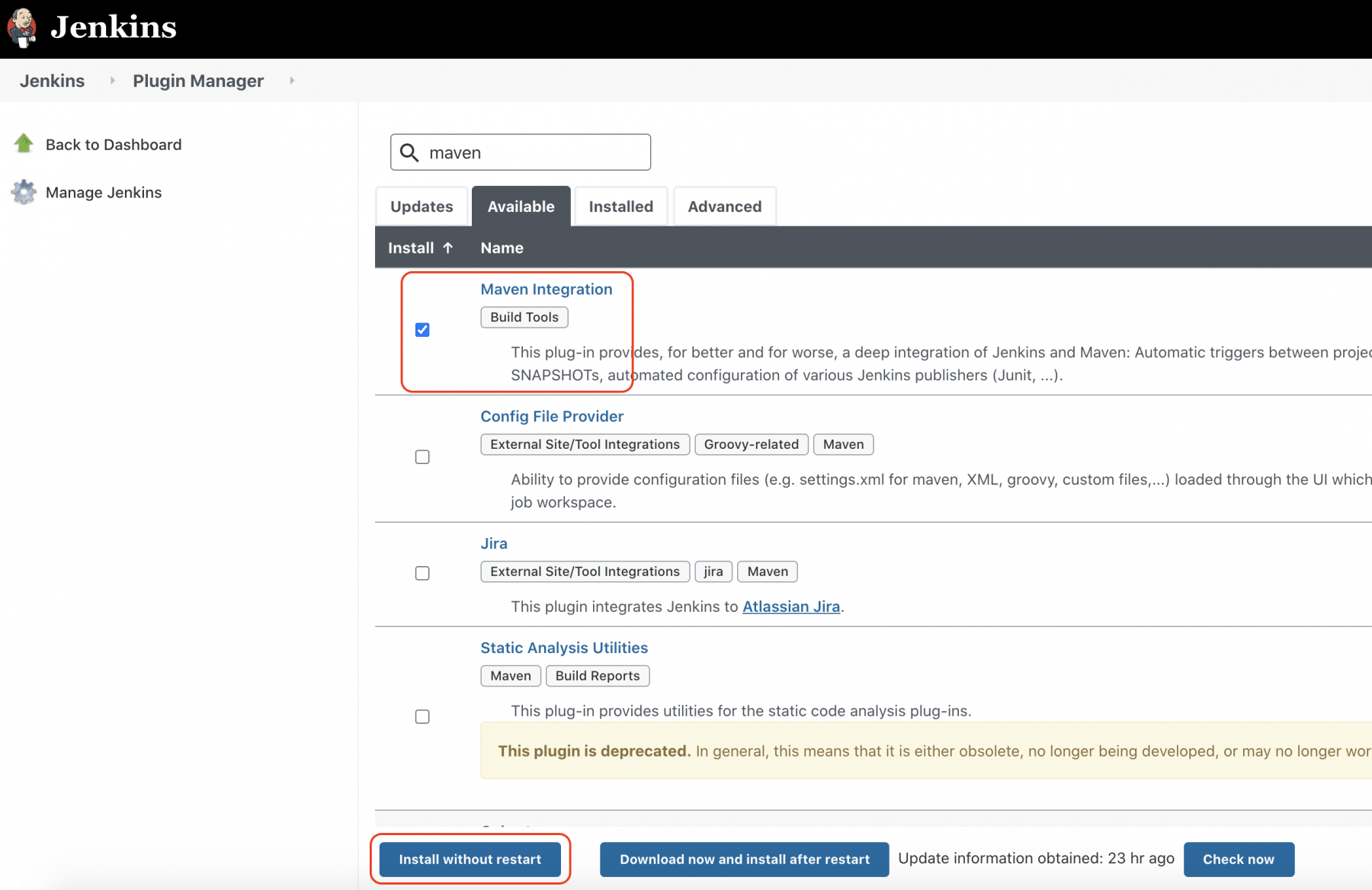

4th Step: Select the checkbox in front of the Maven Integration plugin and click on the Install without restart button:

Install Maven Jenkins plugin

5th Step: Once the plugin installs successfully, click the checkbox to restart Jenkins:

restart jenkins after maven plugin installation

6th Step: After the restart of Jenkins, the Maven Jenkins plugin will be installed successfully and ready for configuration.

After the installation of the Maven Jenkins plugin, let's see how we can configure and integrate the Maven with Jenkins:

How to integrate Maven with Jenkins?

The reason behind integrating Maven with Jenkins is so that we can execute Maven commands through Jenkins as we will majorly use Maven for Java projects. Hence, JDK also comes as a pre-requisite for this setup. So, let's fir quickly see how to can specify the java path in Jenkins:

How to setup Java Path in Jenkins?

Maven integration with Jenkins starts with setting up the Java path in Jenkins. Kindly follow the below steps to setup Java path in Jenkins:

Step 1: Open the Jenkins and go to Jenkins Dashboard. After that, click on the Manage Jenkins link as shown below:

Jenkins Dashboard

As soon as we click on the "Manage Jenkins" link, we will redirect towards the Manage Jenkins page in which we can see different types of options, and from here, we can see the "Global Tool Configuration" option.

Step 2: Now click on the Global Tool Configuration link as highlighted below:

Click on Global tool configuration

As soon as we click on Global Tool Configuration, we will be redirected to the Global tool configuration page to specify different configurations.

Step 3: After that, we need to set the JDK path in Jenkins. To set the JDK path in Jenkins, please follow the below-highlighted steps:

Setting JDK path in Jenkins

  • Click on the Add JDK  button. Kindly note that by default, "Install Automatically" will be checked, so since we are going to use the JDK installed in our local machine, "Install automatically" will install the latest version of JDK, and you will also need to provide credentials to download relevant JDK.
  • Give JDK's name as we gave as JDK 1.8, as this is currently installed in my machine.
  • Give the path of JDK in JAVA_HOME textbox.

After this, the JDK path is properly set up in Jenkins. Now, the next task is to set up the Maven path in Jenkins.

How to setup Maven Path in Jenkins?

In the previous section, we saw how to set up the Java path in Jenkins, and now, in this section, we will set up the Maven path in Jenkins. Please follow the below steps to set up the Maven path in Jenkins.

setup maven path in Jenkins

  1. Click on the Add Maven button. Kindly note that by default, "Install Automatically" will be checked, so we will uncheck it because we don't want that Jenkins will automatically install the latest version of Maven.
  2. Give the name of Maven as we gave as Maven 3.6, as this is the version set up in my machine.
  3. Give the path of Maven in the MAVEN_HOME textbox.
  4. Click on the Save button.

Now that we have configured both Java and Maven in Jenkins, Let's see how to create and execute a Maven project in Jenkins?

What is a Maven project in Jenkins?

Jenkins provides a particular job type, which explicitly provides options for configuring and executing a Maven project. This job type is called the "Maven project." Let's see how we can create a Maven project in Jenkins and run the same.

How to create a Maven project in Jenkins?

We know that the pom.xml file is the heart of Maven projects. For demonstration purposes, we already created a maven project, which is pushed into the GitHub repository. Kindly visit the link Understanding GitHub to understand more about Git and GitHub. For creating a Maven project in Jenkins, follow the steps as mentioned below:

Step 1: Firstly, we need to create a job. To create this, click on the "New Item" option as highlighted below:

New Maven job creation

2nd Step: Now, do the following steps to create a new maven project:

Creation of maven job

  1. Give the Name of the project.
  2. Click on the Maven project. Kindly note that If this Maven Project option is not visible, we need to check whether the "Maven Integration" plugin is installed in Jenkins. If not installed, then install it and restart Jenkins. For more details, please refer to our article"Install Jenkins".
  3. Click on the OK button.

3rd Step: Describe the project in the description section.

Description of project

Now, go to the further sections like Source Code Management and Build Triggers section.

4th Step: Select the Git option in "Source Code Management " as per our requirement because we will pull our Maven project from the GitHub repository.

Github repository

Also, if we need to select the "GitHub hook trigger for GITScm polling"  option in the "Build Triggers"  section, we will trigger our build with the help of webhooks.

Webhook option selected

5th Step: Now perform the following highlighted steps to move further:

specify pom.xml in Jenkins

  1. Firstly, give the relative path of pom.xml in the Root POM textbox, as we do have the pom.xml at the root of the project, so we directly provided the file's name.
  2. Secondly, type "clean install" in the Goals and options textbox as "maven clean," "maven install,"  as well, as "maven test" are the maven commands while running maven build but here "clean install" command is sufficient to trigger build from Jenkins.
  3. Finally, click on the Save button.

So, our Maven project setup finishes and is ready to run. In the further subsection, we will see how to execute a Maven project in Jenkins.

How to execute a Maven project in Jenkins?

As our maven project is already setup in the previous section, we are now ready to execute it. After setup, a Maven project is similar to other job types in Jenkins. Jenkins provides multiple ways to execute jobs. Apart from the manual execution, a few of the options to automatically executing the jobs are highlighted below:

Maven project execution in Jenkins

You can select one or all of the above-mentioned options to trigger the build automatically. Let's understand under what all conditions these options will trigger the build:

Build Trigger Option Behavior
Build whenever a SNAPSHOT dependency is built If checked, Jenkins will parse the POMs of this project and check if any of its snapshot dependencies are built on this Jenkins. If so, Jenkins will set up a build dependency relationship so that whenever the dependency job builds, and a new SNAPSHOT jar creates, Jenkins will schedule a build of this project.This is convenient for automatically performing continuous integration. Jenkins will check the snapshot dependencies from the <dependency> element in the POM, as well as <plugin>s and <extension>s used in POMs.
Build after other projects are built Set up a trigger so that new build schedules for this project when some other projects finish building. This is convenient for running an extensive test after a build is complete, for example.This configuration complements the "Build other projects" section in the "Post-build Actions" of an upstream project but is preferable when you want to configure the downstream project.
Build periodically This feature is primarily for using Jenkins as a CRON replacement, and it is not ideal for continuously building software projects. When people initially start continuous integration, they often use the idea of regularly scheduled builds like nightly/weekly that they use this feature. However, the point of continuous integration is to start a build as soon as a change is made to provide quick feedback. To do that, you need to hook up the SCM change notification to Jenkins.
GitHub hook trigger for GITScm polling If Jenkins receives/ gets PUSH GitHub hook from repo defined in the Git SCM section, it will trigger Git SCM polling logic. In fact, polling logic belongs to Git SCM.
Poll SCM Configure Jenkins to poll changes in SCM. Note that this will be an expensive/ cost-incurring CVS operation, as every polling requires Jenkins to scan the entire workspace and verify it with the server.

You can select any of these options for the auto-execution of Jenkins jobs. We will cover the details of all these options in future articles.

Key Takeaways:

  • Maven is a powerful build management tool for Java projects to assist with a complete life cycle build framework. Moreover, its basis is the concept of POM (Project Object Model) in which all configurations can be done with the help of a pom.xml file.
  • Additionally, we can download binary zip according to our OS and save it in any directory. After that, we need to set up a maven path in the environment variables section in the system and the Global tool configuration in Jenkins.
  • Finally, after setting up, we need to write pom.xml  text in the build section and command "clean install" to drive maven functionalities.
  • Moreover, we can trigger build automatically in Jenkins either manually or various Build trigger options available with Jenkins.
