This tutorial illustrates how to handle Textbox, Checkbox, Radio buttons using Katalon Studio. The reference source code is provided at the end of the tutorial.

1.How to Handle Textbox

A textbox is a field that allows users to enter text as an input. Textbox and textarea are similar but the latter allows multiple lines and more characters.

Users can perform certain actions on textbox such as clear text, type text and validate the provided text using Katalon Studio.

Scenario: Verifying the provided text in textbox

  • Step 1: Launch Browser
  • Step 2: Navigate to URL
  • Step 3: Click on Make Appointment
  • Step 4: Enter username as “Katalon”
  • Step 5: Validate the Enter Username is correctly entered or not

Script Mode

import static com.kms.katalon.core.checkpoint.CheckpointFactory.findCheckpoint
import static com.kms.katalon.core.testcase.TestCaseFactory.findTestCase
import static com.kms.katalon.core.testdata.TestDataFactory.findTestData
import static com.kms.katalon.core.testobject.ObjectRepository.findTestObject
import com.kms.katalon.core.checkpoint.Checkpoint as Checkpoint
import com.kms.katalon.core.checkpoint.CheckpointFactory as CheckpointFactory
import com.kms.katalon.core.mobile.keyword.MobileBuiltInKeywords as MobileBuiltInKeywords
import com.kms.katalon.core.mobile.keyword.MobileBuiltInKeywords as Mobile
import com.kms.katalon.core.model.FailureHandling as FailureHandling
import com.kms.katalon.core.testcase.TestCase as TestCase
import com.kms.katalon.core.testcase.TestCaseFactory as TestCaseFactory
import com.kms.katalon.core.testdata.TestData as TestData
import com.kms.katalon.core.testdata.TestDataFactory as TestDataFactory
import com.kms.katalon.core.testobject.ObjectRepository as ObjectRepository
import com.kms.katalon.core.testobject.TestObject as TestObject
import com.kms.katalon.core.webservice.keyword.WSBuiltInKeywords as WSBuiltInKeywords
import com.kms.katalon.core.webservice.keyword.WSBuiltInKeywords as WS
import com.kms.katalon.core.webui.keyword.WebUiBuiltInKeywords as WebUiBuiltInKeywords
import com.kms.katalon.core.webui.keyword.WebUiBuiltInKeywords as WebUI
import internal.GlobalVariable as GlobalVariable

'Invoking the browser'
WebUI.openBrowser('')

'Passing the URL'
WebUI.navigateToUrl('https://demoaut.katalon.com/')

'Click on the make Appointment Button'
WebUI.click(findTestObject('Page_CURA Healthcare Service/a_Make Appointment'))

'Decalre username variable and assign the value'
def userName = 'katalon'

'Enter text to username field'
WebUI.setText(findTestObject('Page_CURA Healthcare Service (1)/input_username'), userName)

'Get the attribute value of username text field'
input_Value = WebUI.getAttribute(findTestObject('Page_CURA Healthcare Service (1)/input_username'), 'value')

'verify the entered text and attribute value'
WebUI.verifyMatch(userName, input_Value, false)

WebUI.closeBrowser()

Manual Mode

How to Handle Textbox, Checkbox and Radio Button using Katalon Studio

In the script mode above, Def is a keyword in Groovy used for declaration of variables. Username is a variable name, here storing the value “Katalon” in the username variable.

2. How to Handle Button and Checkbox

Scenario: To make an appointment

  • Step 1: Launch the application under test (URL: https://katalon-demo-cura.herokuapp.com/).
  • Step 2: Click on Make Appointment (verify the button and click operation).
  • Step 3: Enter the valid username, password and click on Login button (verify the button and click operation).
  • Step 4: Make an appointment (check, uncheck the checkbox and verify check, uncheck status).

Script Mode

import static com.kms.katalon.core.checkpoint.CheckpointFactory.findCheckpoint
import static com.kms.katalon.core.testcase.TestCaseFactory.findTestCase
import static com.kms.katalon.core.testdata.TestDataFactory.findTestData
import static com.kms.katalon.core.testobject.ObjectRepository.findTestObject
import com.kms.katalon.core.checkpoint.Checkpoint as Checkpoint
import com.kms.katalon.core.checkpoint.CheckpointFactory as CheckpointFactory
import com.kms.katalon.core.mobile.keyword.MobileBuiltInKeywords as MobileBuiltInKeywords
import com.kms.katalon.core.mobile.keyword.MobileBuiltInKeywords as Mobile
import com.kms.katalon.core.model.FailureHandling as FailureHandling
import com.kms.katalon.core.testcase.TestCase as TestCase
import com.kms.katalon.core.testcase.TestCaseFactory as TestCaseFactory
import com.kms.katalon.core.testdata.TestData as TestData
import com.kms.katalon.core.testdata.TestDataFactory as TestDataFactory
import com.kms.katalon.core.testobject.ObjectRepository as ObjectRepository
import com.kms.katalon.core.testobject.TestObject as TestObject
import com.kms.katalon.core.webservice.keyword.WSBuiltInKeywords as WSBuiltInKeywords
import com.kms.katalon.core.webservice.keyword.WSBuiltInKeywords as WS
import com.kms.katalon.core.webui.keyword.WebUiBuiltInKeywords as WebUiBuiltInKeywords
import com.kms.katalon.core.webui.keyword.WebUiBuiltInKeywords as WebUI
import internal.GlobalVariable as GlobalVariable

'Invoking Browser'
WebUI.openBrowser('')

'Launch the url'
WebUI.navigateToUrl('https://demoaut.katalon.com/')

'verify the element is clickable or not'
WebUI.verifyElementClickable(findTestObject('Page_CURA Healthcare Service/a_Make Appointment'))

'Click on Make Appointment Button'
WebUI.click(findTestObject('Page_CURA Healthcare Service/a_Make Appointment'))

'Click on Login Button'
WebUI.click(findTestObject('Page_CURA Healthcare Service (1)/button_Login'))

'Select the Hongkong CURA Healthcare Center from dropdown'
WebUI.selectOptionByValue(findTestObject('Page_CURA Healthcare Service (2)/select_facility'), 'Hongkong CURA Healthcare Center', true)

'check Hospital readmission check box'
WebUI.check(findTestObject('Page_CURA Healthcare Service (2)/input_hospital_readmission'))

'verify Hospital readmission check box is checked'
WebUI.verifyElementChecked(findTestObject('Page_CURA Healthcare Service (2)/input_hospital_readmission'), 30)

'un check Hospital readmission check box'
WebUI.uncheck(findTestObject('Page_CURA Healthcare Service (2)/input_hospital_readmission'))

'Verify uncheck Hospital readmission check box'
WebUI.verifyElementNotChecked(findTestObject('Page_CURA Healthcare Service (2)/input_hospital_readmission'), 30)

'click on Medicadi radio button'
WebUI.click(findTestObject('Page_CURA Healthcare Service (2)/input_programs'))

'Click on calendar icon'
WebUI.click(findTestObject('Page_CURA Healthcare Service (2)/div_input-group-addon'))

'CLick on Calendar date'
WebUI.click(findTestObject('Page_CURA Healthcare Service (2)/td_3'))

'Enter katalon text in comments box'
WebUI.setText(findTestObject('Page_CURA Healthcare Service (2)/textarea_comment'), 'Katalon')

'Click on Book Appointment'
WebUI.click(findTestObject('Page_CURA Healthcare Service (2)/button_Book Appointment'))

'Close the Browser'
WebUI.closeBrowser()

Manual Mode

Handle Button and Checkbox

In the script above, the keyword VerifyElementClickable is used to validate whether the Make Appointment Button is clickable.

The keywords VerifyElementChecked and VerifyElementNotChecked are used to validate whether an element is checked or unchecked, respectively.

3. How to Handle Radio Button

Radio Button is a toggle-button that allows you to check the operations. Scenario:  To make an appointment

  • Step 1: Launch the application under test (URL: *** https://katalon-demo-cura.herokuapp.com/***).
  • Step 2: Click on Make Appointment (verify the button and click operation).
  • Step 3: Enter a valid username, password and click on Login button (verify the button and click operation).
  • Step 4: Make an appointment (check, uncheck the Radio Button and verify radio button check, uncheck status).

Script Mode

import static com.kms.katalon.core.checkpoint.CheckpointFactory.findCheckpoint
import static com.kms.katalon.core.testcase.TestCaseFactory.findTestCase
import static com.kms.katalon.core.testdata.TestDataFactory.findTestData
import static com.kms.katalon.core.testobject.ObjectRepository.findTestObject
import com.kms.katalon.core.checkpoint.Checkpoint as Checkpoint
import com.kms.katalon.core.checkpoint.CheckpointFactory as CheckpointFactory
import com.kms.katalon.core.mobile.keyword.MobileBuiltInKeywords as MobileBuiltInKeywords
import com.kms.katalon.core.mobile.keyword.MobileBuiltInKeywords as Mobile
import com.kms.katalon.core.model.FailureHandling as FailureHandling
import com.kms.katalon.core.testcase.TestCase as TestCase
import com.kms.katalon.core.testcase.TestCaseFactory as TestCaseFactory
import com.kms.katalon.core.testdata.TestData as TestData
import com.kms.katalon.core.testdata.TestDataFactory as TestDataFactory
import com.kms.katalon.core.testobject.ObjectRepository as ObjectRepository
import com.kms.katalon.core.testobject.TestObject as TestObject
import com.kms.katalon.core.webservice.keyword.WSBuiltInKeywords as WSBuiltInKeywords
import com.kms.katalon.core.webservice.keyword.WSBuiltInKeywords as WS
import com.kms.katalon.core.webui.keyword.WebUiBuiltInKeywords as WebUiBuiltInKeywords
import com.kms.katalon.core.webui.keyword.WebUiBuiltInKeywords as WebUI
import internal.GlobalVariable as GlobalVariable

'Invoking Browser'
WebUI.openBrowser('')

'Launch the url'
WebUI.navigateToUrl('https://demoaut.katalon.com/')

'Click on Make Appointment Button'
WebUI.click(findTestObject('Page_CURA Healthcare Service/a_Make Appointment'))

'Click on Login Button'
WebUI.click(findTestObject('Page_CURA Healthcare Service (1)/button_Login'))

'Select the Hongkong CURA Healthcare Center from dropdown'
WebUI.selectOptionByValue(findTestObject('Page_CURA Healthcare Service (2)/select_facility'), 'Hongkong CURA Healthcare Center', true)

'Check Hospital readmission check box'
WebUI.check(findTestObject('Page_CURA Healthcare Service (2)/input_hospital_readmission'))

'Check on Medicadi radio button'
WebUI.check(findTestObject('Page_CURA Healthcare Service (2)/input_Medicaid Radio'))

'Check the None Radio Button'
WebUI.verifyElementChecked(findTestObject('Page_CURA Healthcare Service (2)/input_Medicaid Radio'), 30)

'Check on Medicadi radio button'
WebUI.check(findTestObject('Page_CURA Healthcare Service (2)/input_None Radio'))

'Verify unchecked status of Medicaid Radio button'
WebUI.verifyElementNotChecked(findTestObject('Page_CURA Healthcare Service (2)/input_Medicaid Radio'), 30)

'Verify the checked status of the None Radio Button'
WebUI.verifyElementChecked(findTestObject('Page_CURA Healthcare Service (2)/input_None Radio'), 30)

'Click on calendar icon'
WebUI.click(findTestObject('Page_CURA Healthcare Service (2)/div_input-group-addon'))

'Click on Calendar date'
WebUI.click(findTestObject('Page_CURA Healthcare Service (2)/td_3'))

'Enter katalon text in comments box'
WebUI.setText(findTestObject('Page_CURA Healthcare Service (2)/textarea_comment'), 'Katalon')

'Click on Book Appointment'
WebUI.click(findTestObject('Page_CURA Healthcare Service (2)/button_Book Appointment'))

'Close the Browser'
WebUI.closeBrowser()

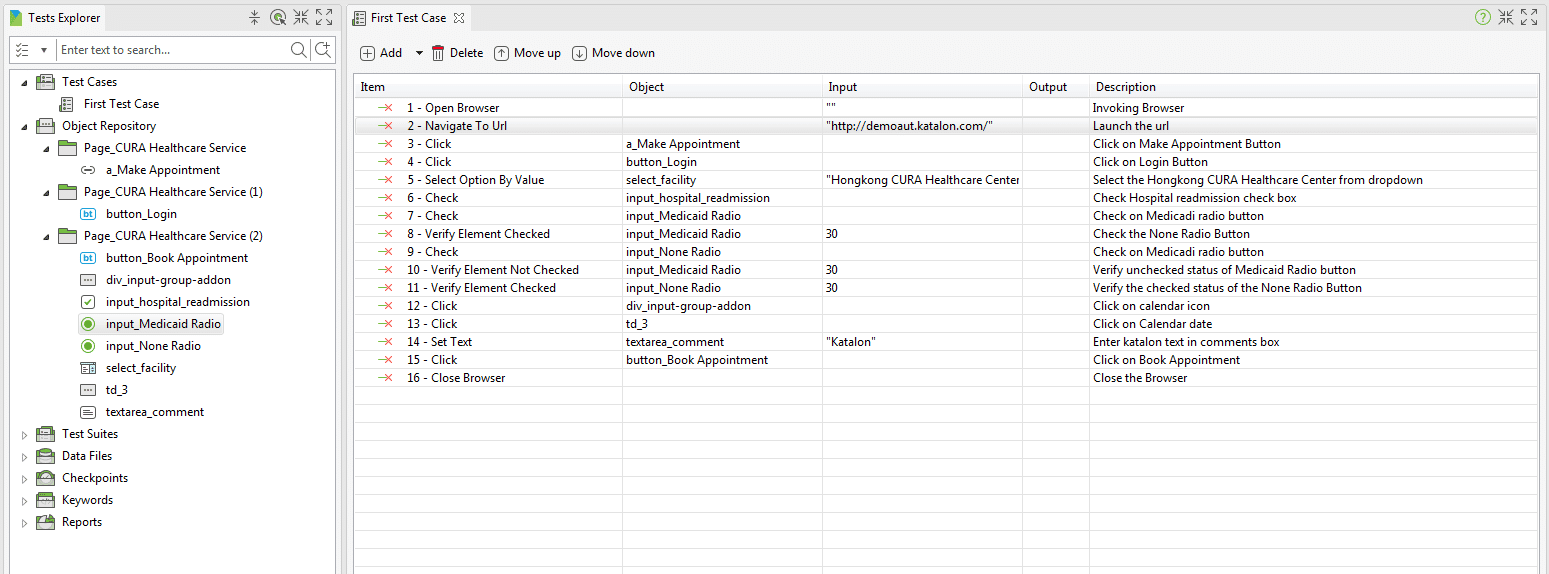

Manual Mode

Handle Radio Button

The source code is available to be downloaded here.

For further instructions and help, refer to [WebUI] Text and [WebUI] Checkbox.

You can also refer to Katalon Studio Tutorials and Katalon Forum for more tutorials and discussions.
